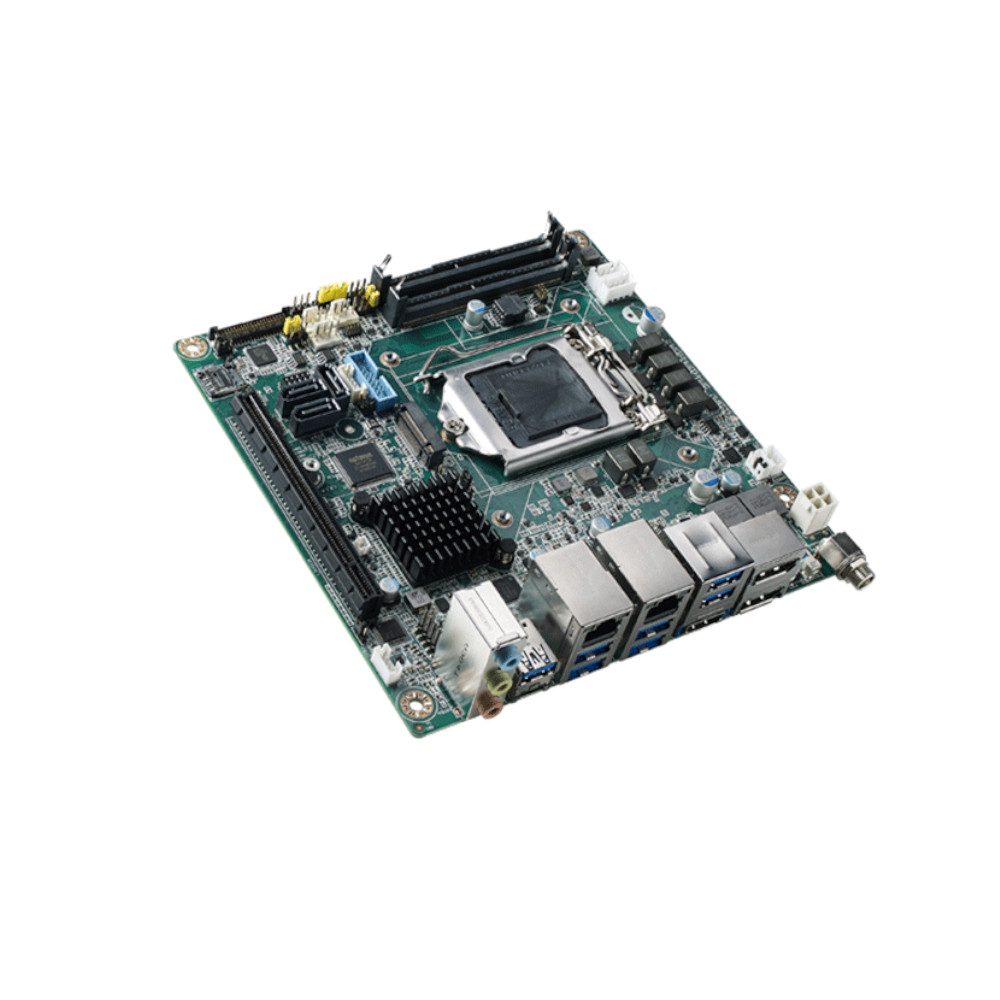

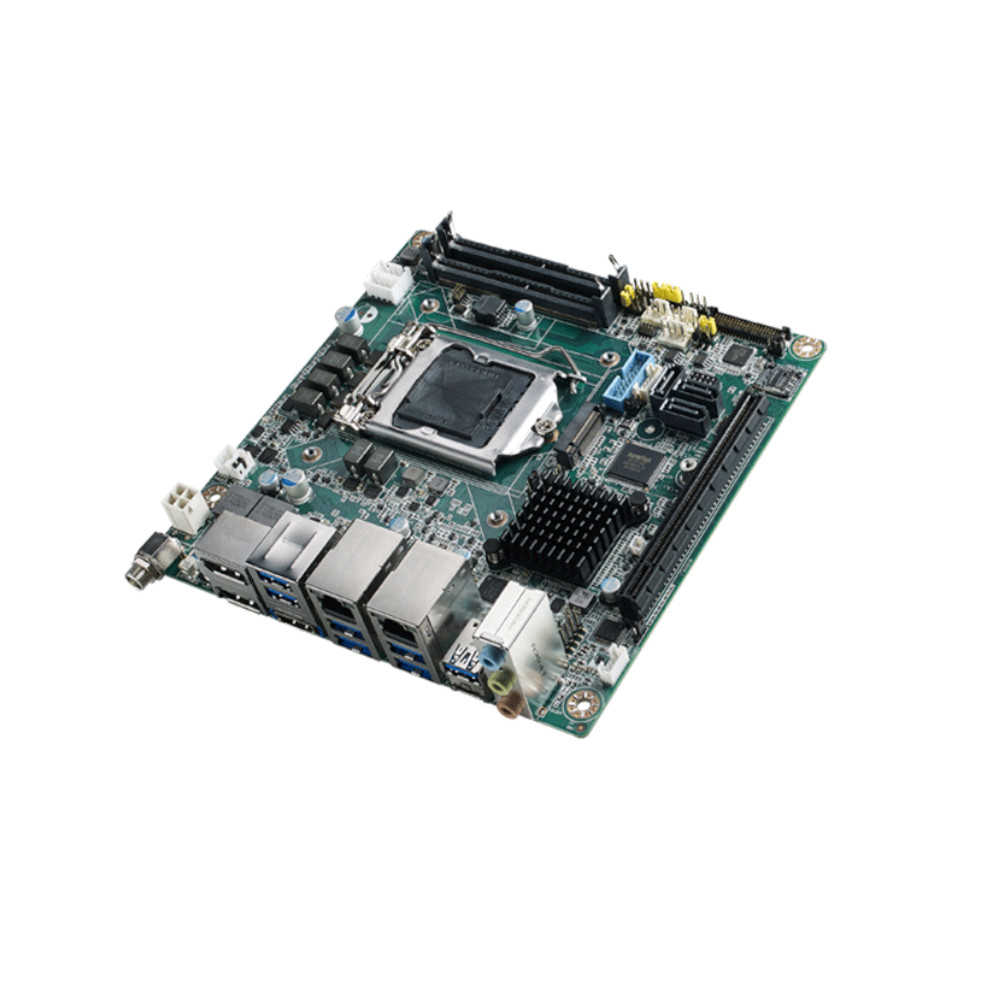

AIMB-276
8th/9th Gen Intel® Core™ i7/i5/i3 LGA1151 Mini-ITX with HDMI2.0a/Dual DP++/LVDS(or eDP), 2 x COM, Dual LAN, SATA III, 6 x USB3.1 & 4 x USB3.0, 2 x M.2
Supports 8th/9th Generation Intel® Core™ i processor (LGA1151) with Intel Q370 chipset
Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
Supports triple display of Dual DP++/HDMI 2.0a/LVDS( or eDP)
Supports PCIe x16 (Gen 3), 1 x M.2 B key + 1 x M.2 E key, 6 USB 3.1 & 4 USB 3.0, and 3 SATA III
Supports wide range 12V~24V DC Input
Supports Intel vPro, AMT 12.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)
Supports WISE-PaaS/RMM and Embedded Software APIs
8th/9th Gen Intel® Core™ i7/i5/i3 LGA1151 Mini-ITX with HDMI2.0a/Dual DP++/LVDS(or eDP), 2 x COM, Dual LAN, SATA III, 6 x USB3.1 & 4 x USB3.0, 2 x M.2
Supports 8th/9th Generation Intel® Core™ i processor (LGA1151) with Intel Q370 chipset
Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
Supports triple display of Dual DP++/HDMI 2.0a/LVDS( or eDP)
Supports PCIe x16 (Gen 3), 1 x M.2 B key + 1 x M.2 E key, 6 USB 3.1 & 4 USB 3.0, and 3 SATA III
Supports wide range 12V~24V DC Input
Supports Intel vPro, AMT 12.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)
Supports WISE-PaaS/RMM and Embedded Software APIs
