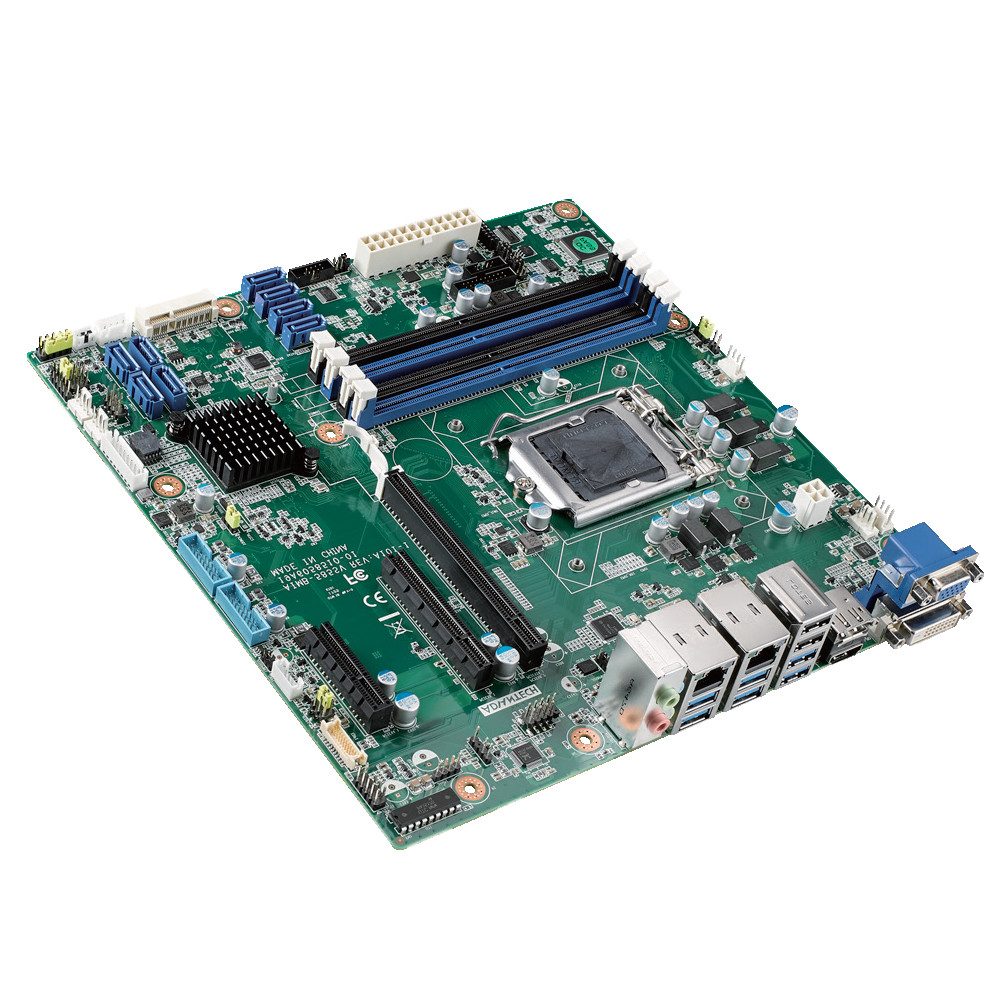

AIMB-585SV
6th & 7th Gen Intel® Xeon E3/ Core™ i7/i5/i3 LGA1151 uATX with DVI-D/HDMI2.0/DP++/eDP/VGA, 2 COM, Dual LAN, 8 SATAIII, 1 miniPCIe (mSATA support),10 USB3.0, 2 USB2.0
Supports WISE PaaS/RMM and Embedded Software APIs
Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
Supports PCIE Gen3, 10 x USB 3.0, 2 USB 2.0, 8 x SATAIII, 1 miniPCIe(mSATA) and dual GbE LAN
Supports Intel AMT 11.0 and Intel vPro competent
Supports DVI-D,HDMI2.0 ,DP++,eDP,VGAdisplay
Four DIMM sockets support up to 64GB DDR4 2133/2400 MHz SDRAM
Supports Intel® Xeon®/ 6th & 7th Gen Core™ i7/i5/i3 processor with C236 chipset
6th & 7th Gen Intel® Xeon E3/ Core™ i7/i5/i3 LGA1151 uATX with DVI-D/HDMI2.0/DP++/eDP/VGA, 2 COM, Dual LAN, 8 SATAIII, 1 miniPCIe (mSATA support),10 USB3.0, 2 USB2.0
Supports WISE PaaS/RMM and Embedded Software APIs
Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
Supports PCIE Gen3, 10 x USB 3.0, 2 USB 2.0, 8 x SATAIII, 1 miniPCIe(mSATA) and dual GbE LAN
Supports Intel AMT 11.0 and Intel vPro competent
Supports DVI-D,HDMI2.0 ,DP++,eDP,VGAdisplay
Four DIMM sockets support up to 64GB DDR4 2133/2400 MHz SDRAM
Supports Intel® Xeon®/ 6th & 7th Gen Core™ i7/i5/i3 processor with C236 chipset
| CPU | |
|---|---|
| RAM |
