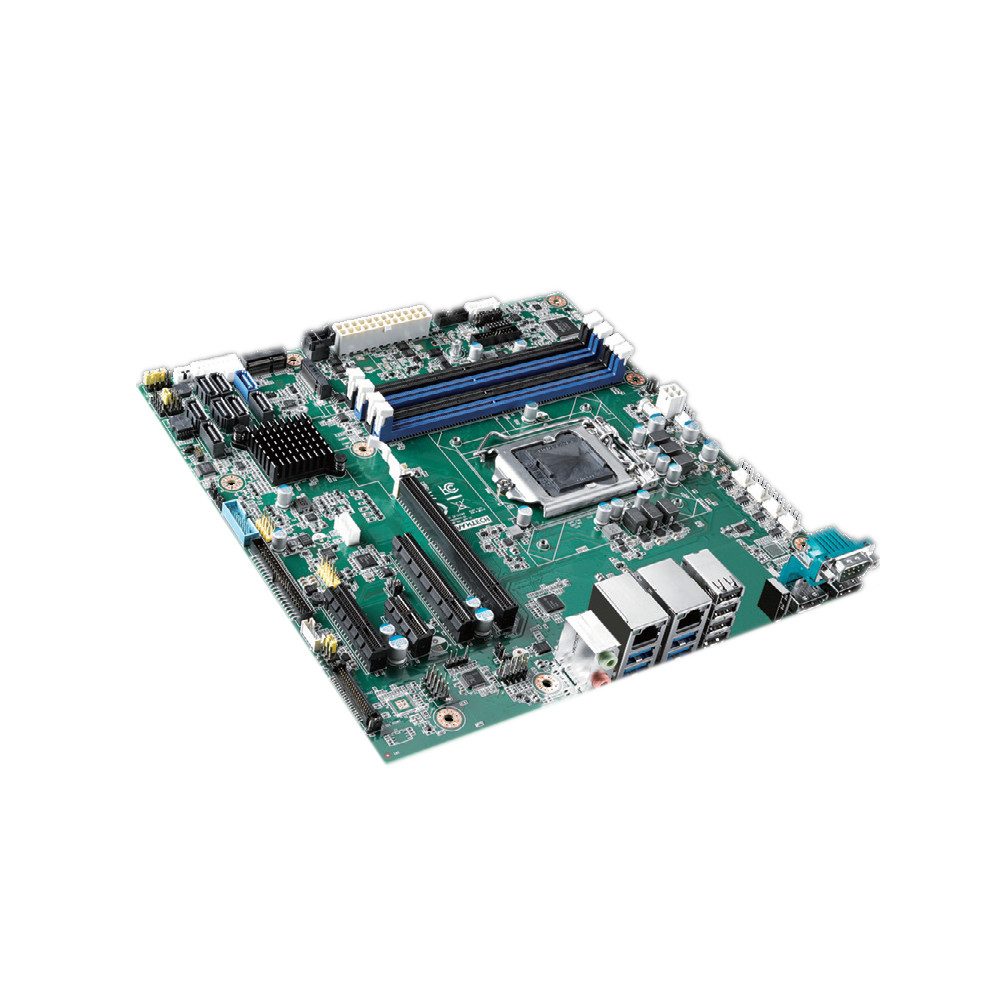

AIMB-586
Intel® Xeon® E3/ 8th & 9th Gen Core™i7/i5/i3 LGA1151, MicroATX with HDMI/2 DP++/eDP (LVDS)/6 COM, 4 LANs,USB 3.1, ATX or 12V DC-IN
Supports Intel® 8th/ 9th Gen Xeon/ Core™ i7/i5/i3 processor with Q370/C246/H310 chipset
Four U-DIMM sockets support up to 128GB DDR4 2400/2666 MHz SDRAM
Supports HDMI2.0a(option),2 DP++,eDP/LVDS(option) display
Supports Intel AMT 12.0 and Intel vPro competent
Supports PCIE Gen3, 4 USB3.1, 10 x USB2.0/USB 3.0, upto 4 x SATAIII and quad GbE LAN, M.2(M-key),M.2(E-key)
Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
Supports DeviceOn and Embedded Software APIs
Intel® Xeon® E3/ 8th & 9th Gen Core™i7/i5/i3 LGA1151, MicroATX with HDMI/2 DP++/eDP (LVDS)/6 COM, 4 LANs,USB 3.1, ATX or 12V DC-IN
Supports Intel® 8th/ 9th Gen Xeon/ Core™ i7/i5/i3 processor with Q370/C246/H310 chipset
Four U-DIMM sockets support up to 128GB DDR4 2400/2666 MHz SDRAM
Supports HDMI2.0a(option),2 DP++,eDP/LVDS(option) display
Supports Intel AMT 12.0 and Intel vPro competent
Supports PCIE Gen3, 4 USB3.1, 10 x USB2.0/USB 3.0, upto 4 x SATAIII and quad GbE LAN, M.2(M-key),M.2(E-key)
Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
Supports DeviceOn and Embedded Software APIs
| CPU | |
|---|---|
| RAM |
