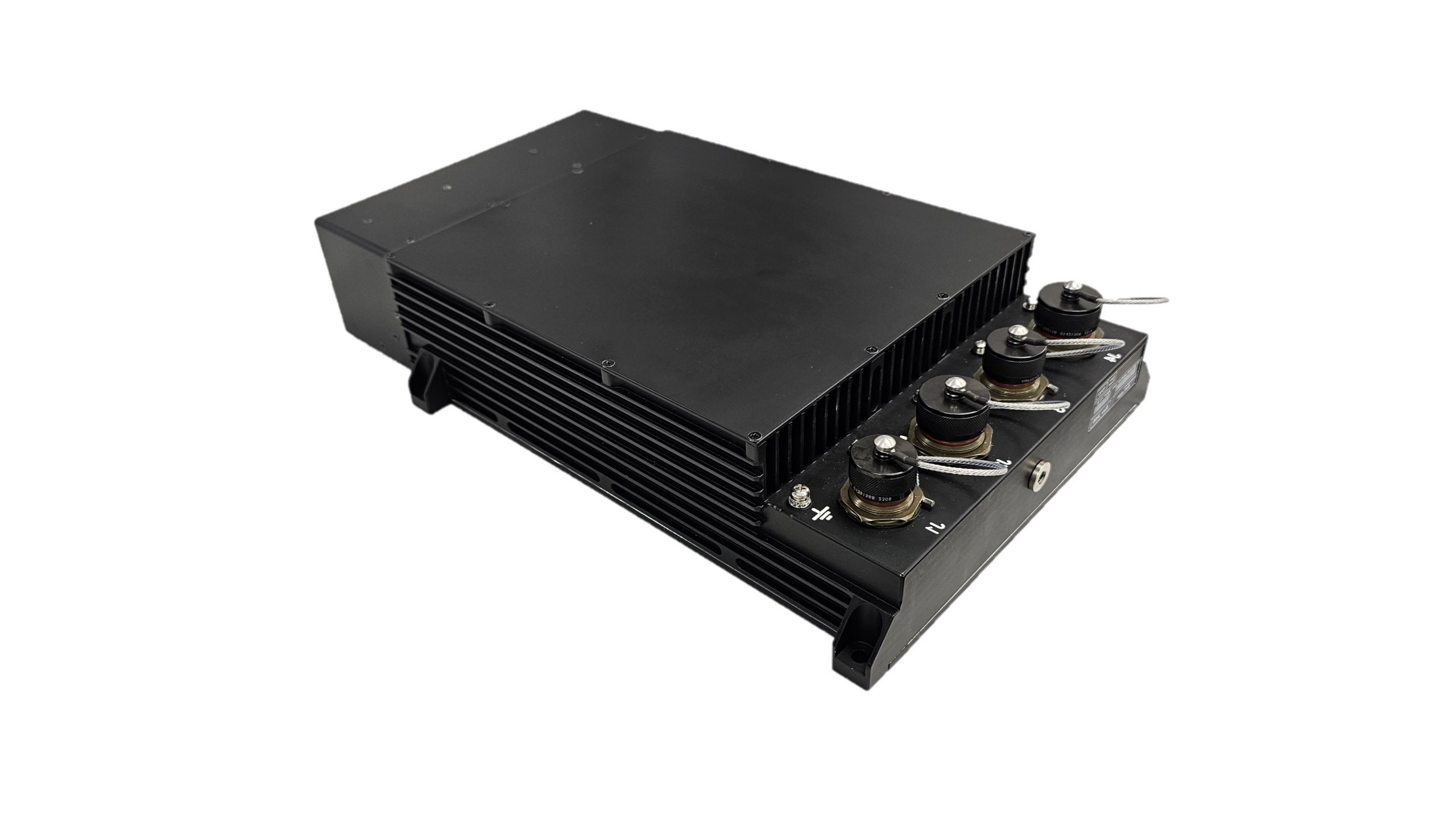

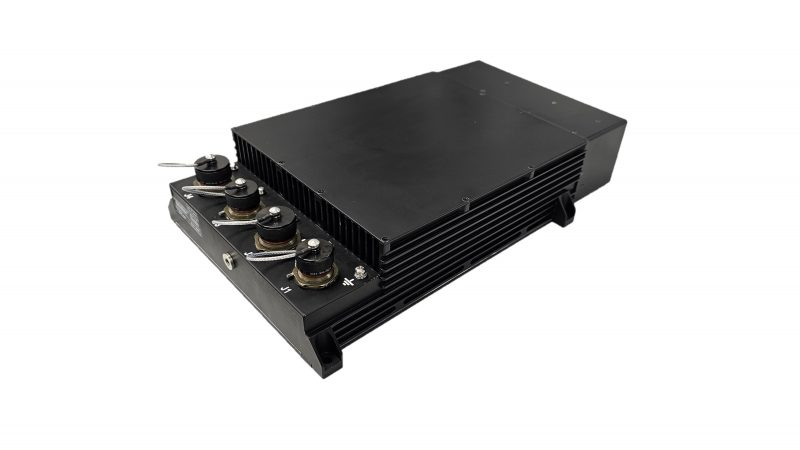

AVR-400-R1 Rugged CPU/GPGPU System
Key Features
11th Gen Xeon-W CPU, with 8 cores, 2.6GHz, 45W
Up to 64GB DDR4 memory, up to 2TB storage
Nvidia RTX A2000, 2560 cores, 8GB, 60W
Operation Temperature: -400C ~ 600C
MIL-STD-810, MIL-STD-461, MIL-STD-1275/704
Aluminium/Bronze D38999 connectors
The Rugged CPU/GPGPU System integrates the latest COM Express® Type 6 CPU with a high-performance, low-power embedded MXM GPU in a sealed, weatherproof, and ruggedized form factor. Designed for extreme conditions, it meets MIL-STD-810H standards for shock and vibration, MIL-STD-461G for electromagnetic compatibility, and MIL-STD-1275E/704F for power compliance. Engineered to operate reliably in extended temperature ranges and harsh, salty environments, this system delivers exceptional durability and performance in demanding applications.
| CPU | |
|---|---|
| Memory | 64GB DDR4 3200MHz |
| Storage | 2TB SSD in mSATA slot |
| MXM | RTX A2000 with CUDA:2560 Tensor:80 RT:20 cores, 8GB |
| Video out | 1x VGA; 2x RS-170 |
| Ethernet | 1 x ETH 10/100/1000 Mbps |
| USB | 2x USB2.0 |
| Serial | 1x RS-232, 2x RS-422 |
| Power Supply | 18-36VDC Input (nominal 28VDC), maximum 160W |
| Operating Temperature | -40 ~ 60° C |
| Storage Temperature | -40 ~ 85° C |
| IP Rating | IP67 |
| Environmental | MIL-STD-810H |
| EMI/EMC | MIL-STD-461G |
| Dimensions (W x H x D) | 246mm x 80mm x 393mm (incl fan unit) |
| OS Support | Win10 64bit and Ubuntu 64bit. |
