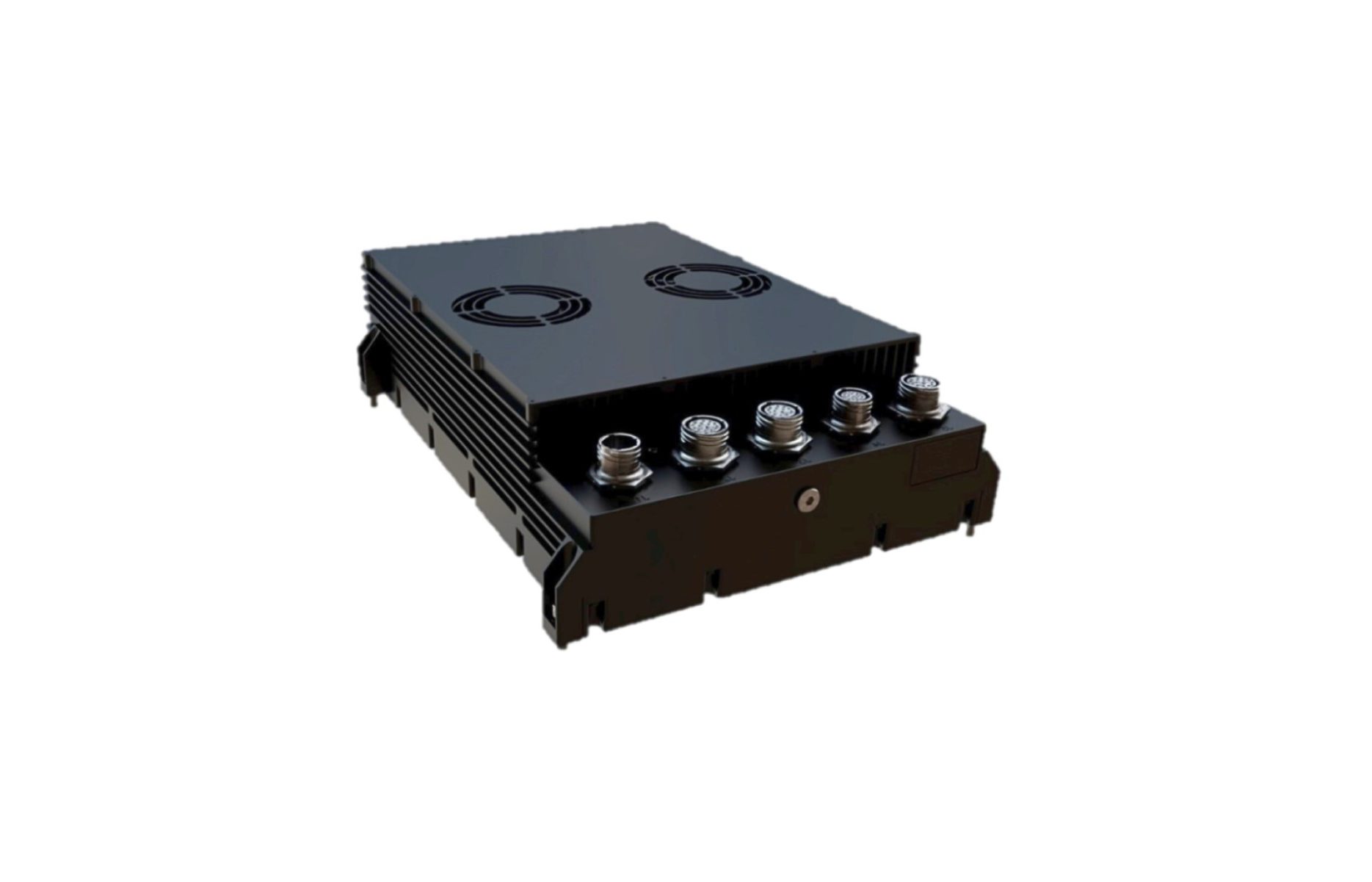

AVR-500 Rugged Airborne/Vehicle Server
Key Features
4th Gen Xeon Scalable CPU
Up to 256GB DDR5 memory, up to 16TB NVMe storage
2x 10GB Ethernet, 2x 1GB Ethernet
Sealed, conduction cooled with D38999 connectors
MIL-STD-810, MIL-STD-461, MIL-STD-1275/704
The Rugged Server System integrates the latest Intel® Xeon® Scalable CPU with high-performance I/O in a rugged, sealed, and weatherproof chassis, delivering exceptional reliability in extreme environments.
Engineered to meet MIL-STD-810H for shock and vibration, MIL-STD-461G for electromagnetic compatibility, and MIL-STD-1275E/704F for power compliance, this system is built to withstand extended temperature ranges and corrosive salty environments.
Designed for ground vehicle, naval, and airborne applications, it ensures mission-critical performance in demanding operational conditions.
| CPU | |
|---|---|
| Memory | Up to 256GB DDR5 |
| Storage | Up to 16TB via 2x internal U.2 SSDs |
| TPM | TPM2.0 with Infineon 9670 controller |
| Maintenance | 1x VGA; 2x USB2.0, 2x RS-422/485 (Optional) |
| Ethernet 1GB | 2x 10/100/1000 Mbps |
| Ethernet 10GB | 2x 10 GB |
| Power Supply | 12-36VDC Input (nominal 28VDC), maximum 350W, MIL-STD-1275E/704F compliant |
| Operating Temperature | -20 ~ 50° C |
| Storage Temperature | -20 ~ 80° C |
| IP Rating | IP67 |
| Environmental | MIL-STD-810H |
| EMI/EMC | MIL-STD-461G |
| Dimensions (W x H x D) | 291mm x 102mm x 400mm |
| Weight | 12.5Kg |
| OS Support | Win10 64bit and Ubuntu 64bit. |
